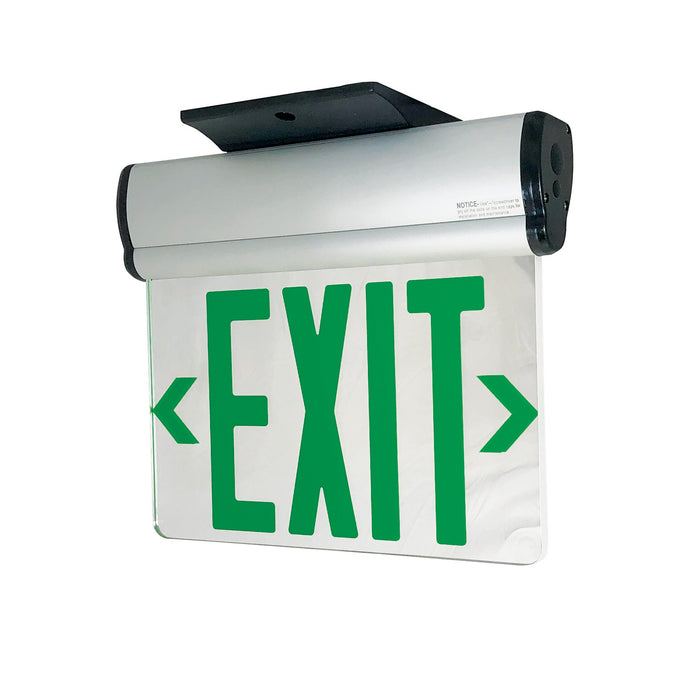

Nora Lighting NX-810-LEDGMA LED Edge-Lit Exit Sign, Aluminum
Backordered: Estimated date of availability: Not Available
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6" Green letters. AC only. Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit single face, mirrored acrylic. Face is constructed with 0.40" clear acrylic with rounded and finished edge for attractive appearance. Face contains green 6" high and 3/4" thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0ú to 90ú for wall, ceiling or sloped applications. Body: Extruded aluminum housing and acrylic panel. Mounting: Mounting hardware consist of 0.06" steel universal junction box bracket, 7/8" profile 0.11" die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA
Details:
Product Type: Exit Signs
Finish: Aluminum
Measurements:
Lamping:
Not Included
Max Wattage: 3.00W
Addl Specifications:
Safety Listing: UL
Safety Rating: Damp
