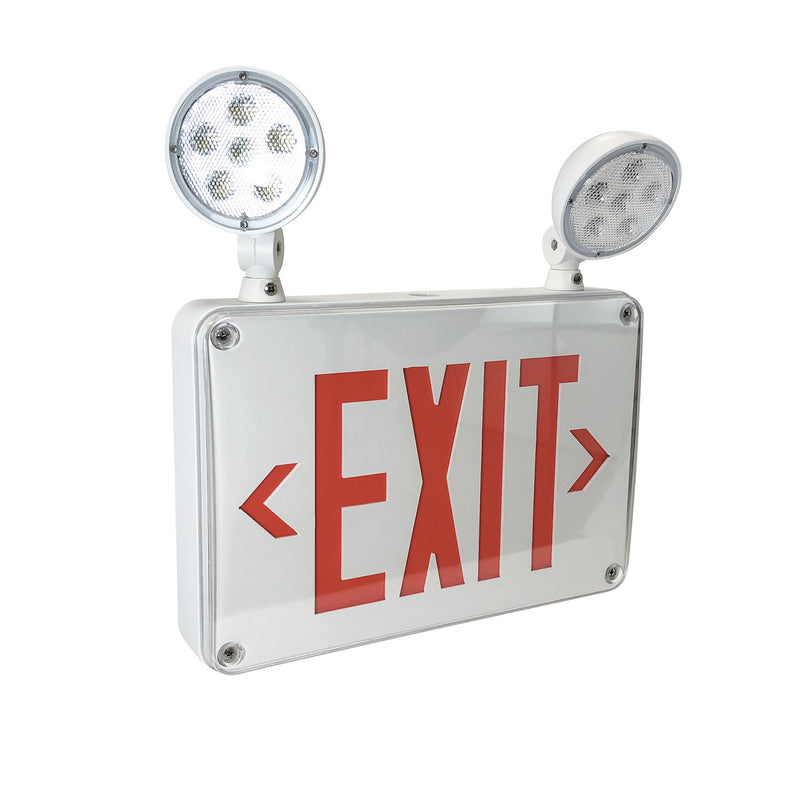

Nora Lighting NEX-720-LED/R-CC LED Self-Diagnostic Exit & Emergency Sign w/ Battery Backup, White
Available for Special Order: Manufacturer has 20+ available to ship
LED exit sign with 6" red letters / white housing, Cold Weather Location, color diffusion, battery backup & remote capability, self diagnostic testing, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance, emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes. Input Voltage: 120/277VAC Wattage: 3.2W Lumens / Wattage Per Head: (2) 90lm / 0.75W Batteries: (2) 3.6V Replaceable 1000mAh NiCad Recharge Time: 24 hours Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional second face plate included for exit signs requiring two sides. Fully illuminaited 6" letters with 3/4" stroke and field selectable directional chevrons included. Mounting: Wall or Side Mount, Listed for installations indoor, outdoor or wet locations. Remote Capability: 3.6V 1.5W max, Luminaire includes an additional 3.6V battery to operate a remote emergency head up to 1.5W for 90 minutes during power loss. (Damp Location rated when used with remote head) Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes and additional battery will operature a remote emergency head. Batteries requires 24 hours to recharge when power is restored. Cold Weather Option: Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C. Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101, Title 20
Details:
Product Type: Exit Signs
Finish: White
Measurements:
Width / Dia: 13.00"
Height: 14.00"
Length: 2.50"
Weight: 3.75lbs.
Lamping:
Not Included
Max Wattage: 3.20W
Light Output: 180.00
Addl Specifications:
Safety Listing: UL
Safety Rating: Wet
