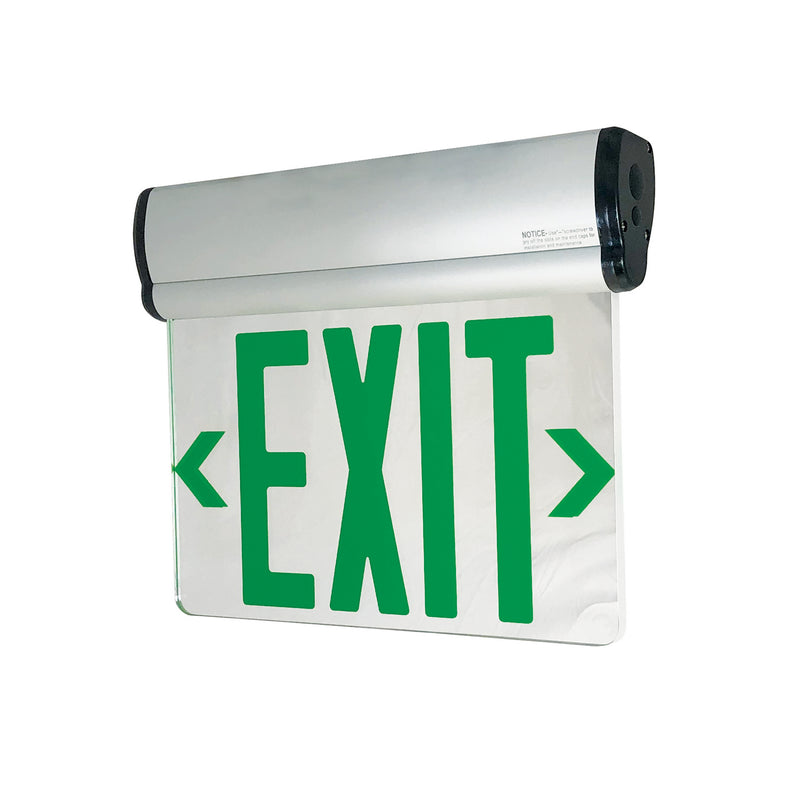

Nora Lighting NX-813-LEDG2MA LED Edge-Lit Exit Sign, Green/Mirror/Aluminum
Available for Special Order: Manufacturer has 20+ available to ship
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6" Green letters. AC only. Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit double face, mirrored acrylic. Acrylic face has rounded and finished edge for attractive appearance. Green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0ð to 90ð for wall, ceiling or sloped applications. Body: Galvanized steel housing with die-cast cover plate and acrylic panel. Mounting: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90ð perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA
Details:
Product Type: Exit Signs
Finish: Green/Mirror/Aluminum
Measurements:
Width / Dia: 12.00"
Height: 10.63"
Length: 1.63"
Lamping:
Not Included
Max Wattage: 3.00W
Light Source: LED
Addl Specifications:
Safety Listing: UL
Safety Rating: Damp
